Project Description

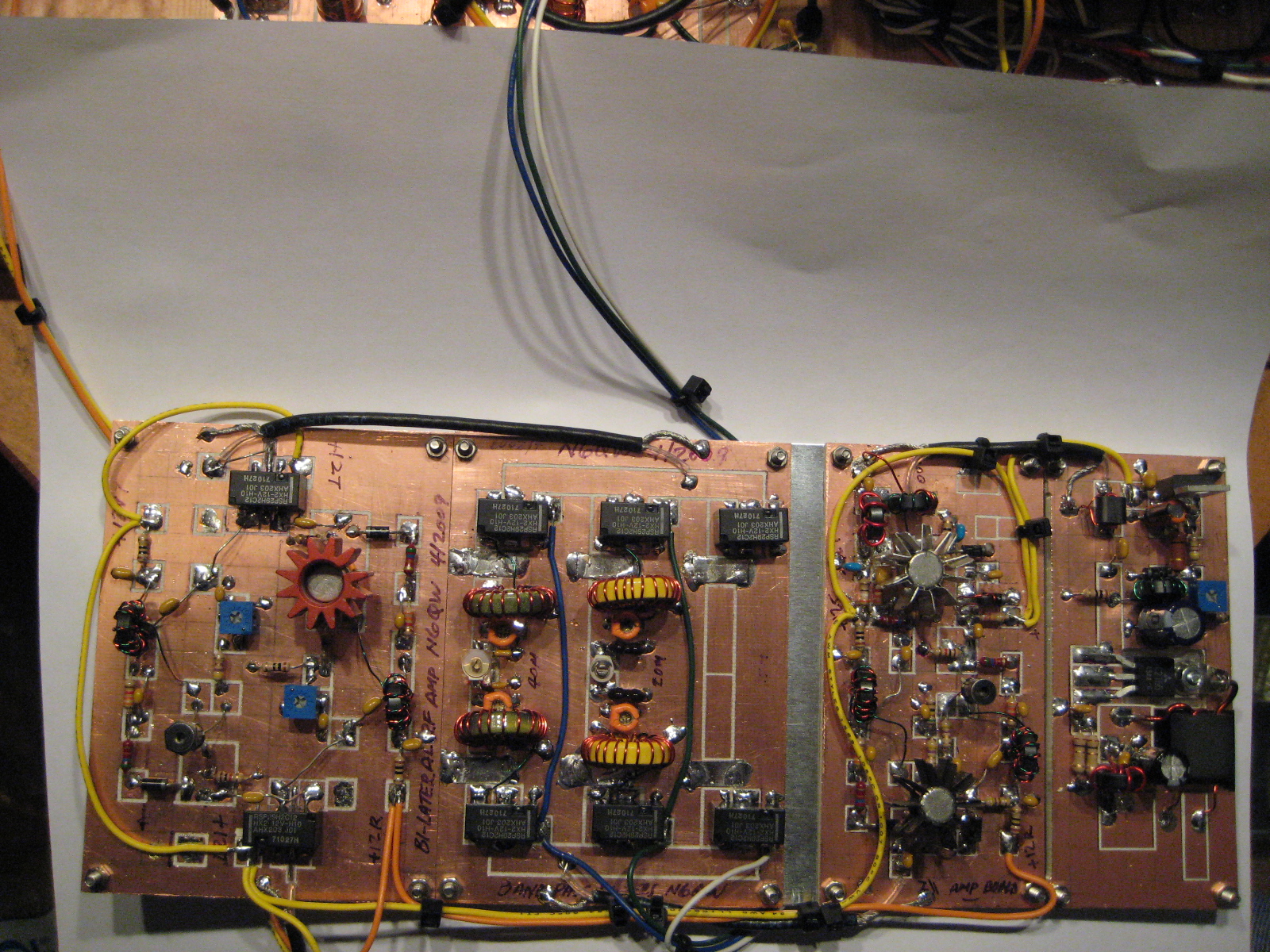

Main Board

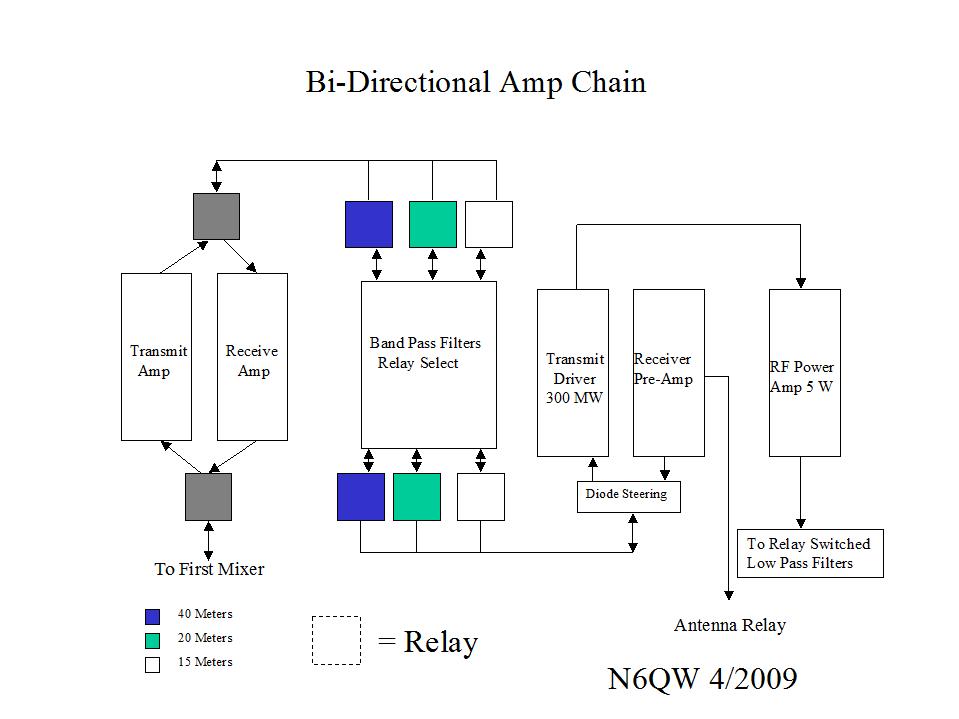

Bi-Directional Amplifiers
AGC Circuit

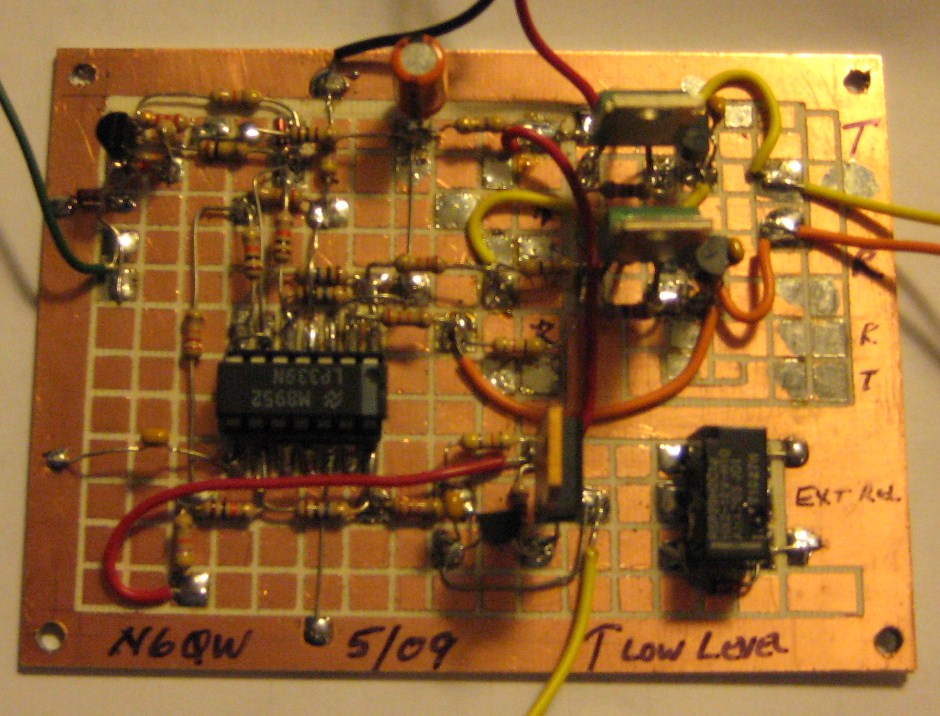

T/R Switching Circuit

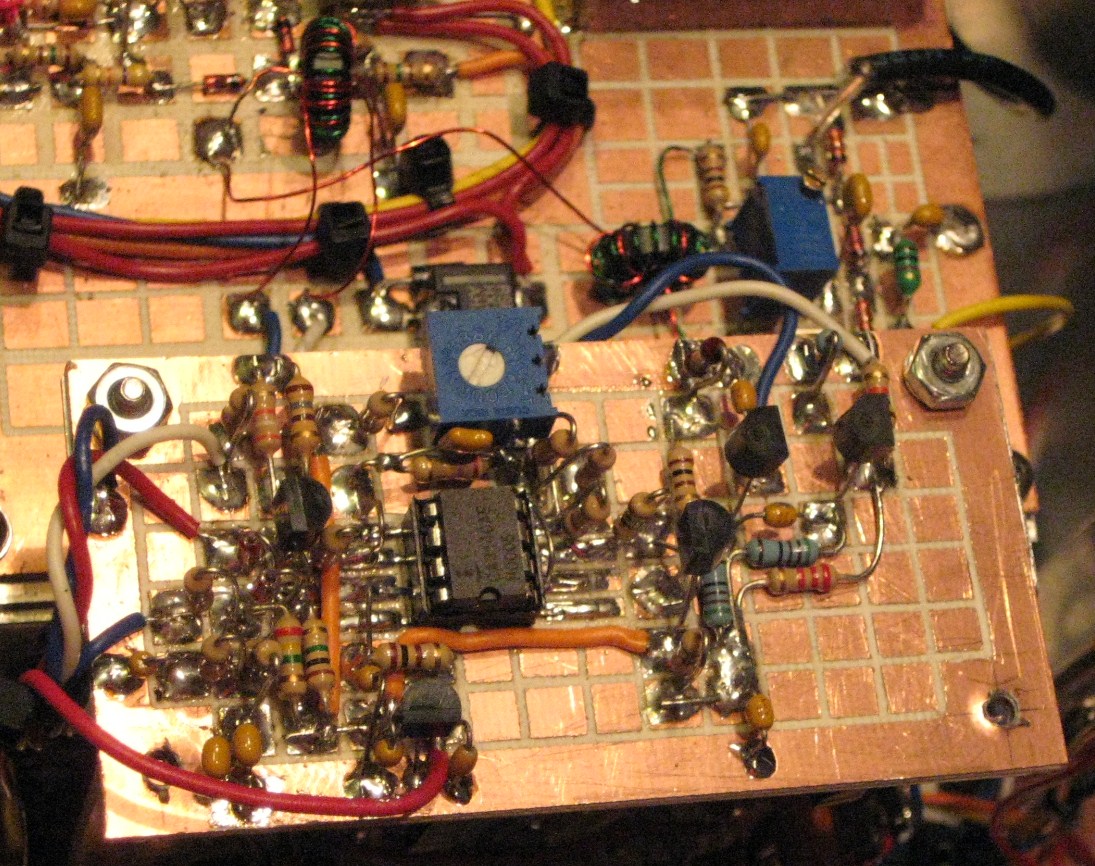

Utility Amplifier

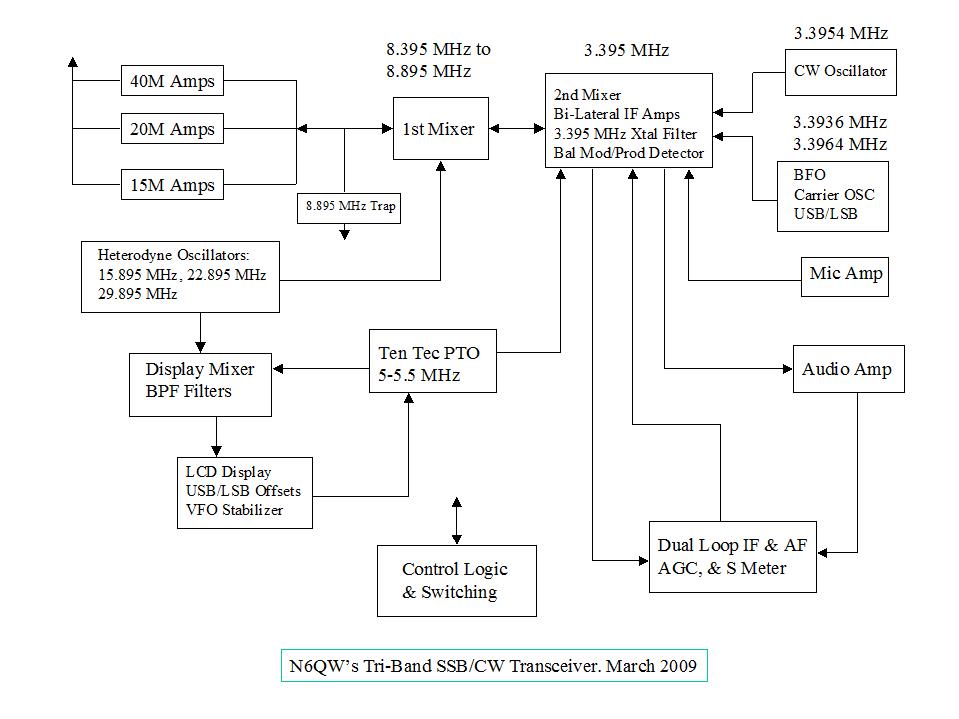

System Architecture
First Mixer Stage

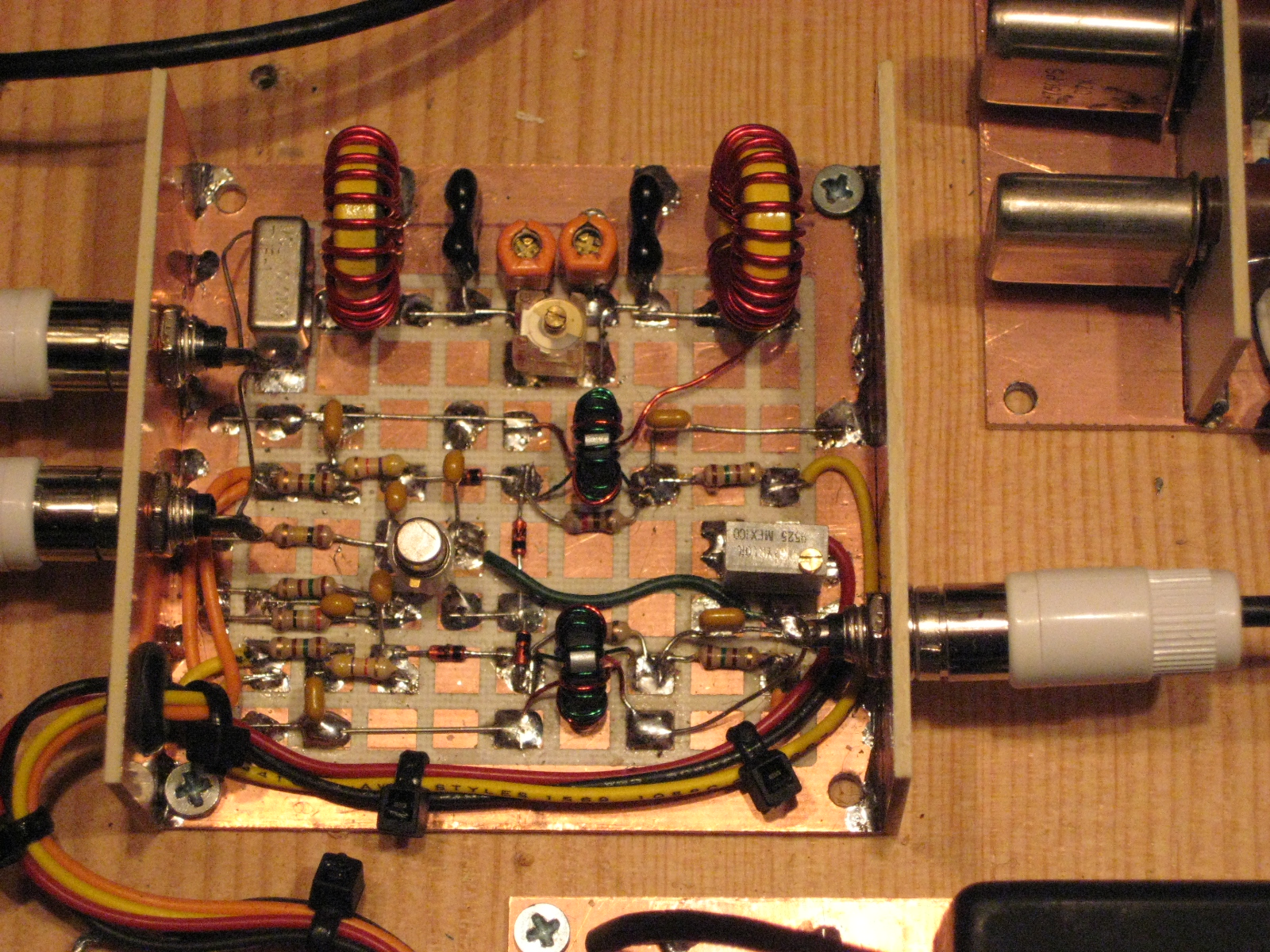

Bi-Directional Amp Photo

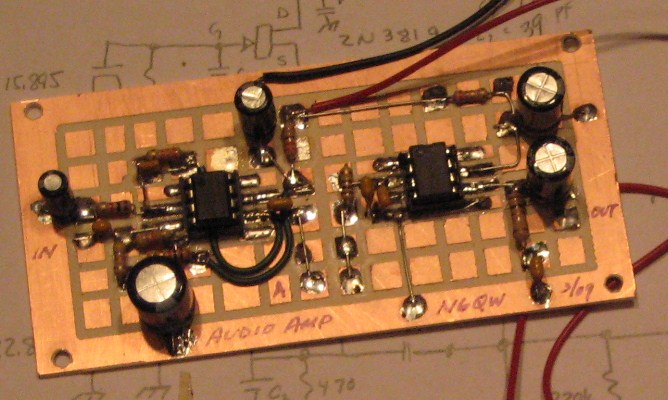

Audio Amplifier
Frequency Display
Performance

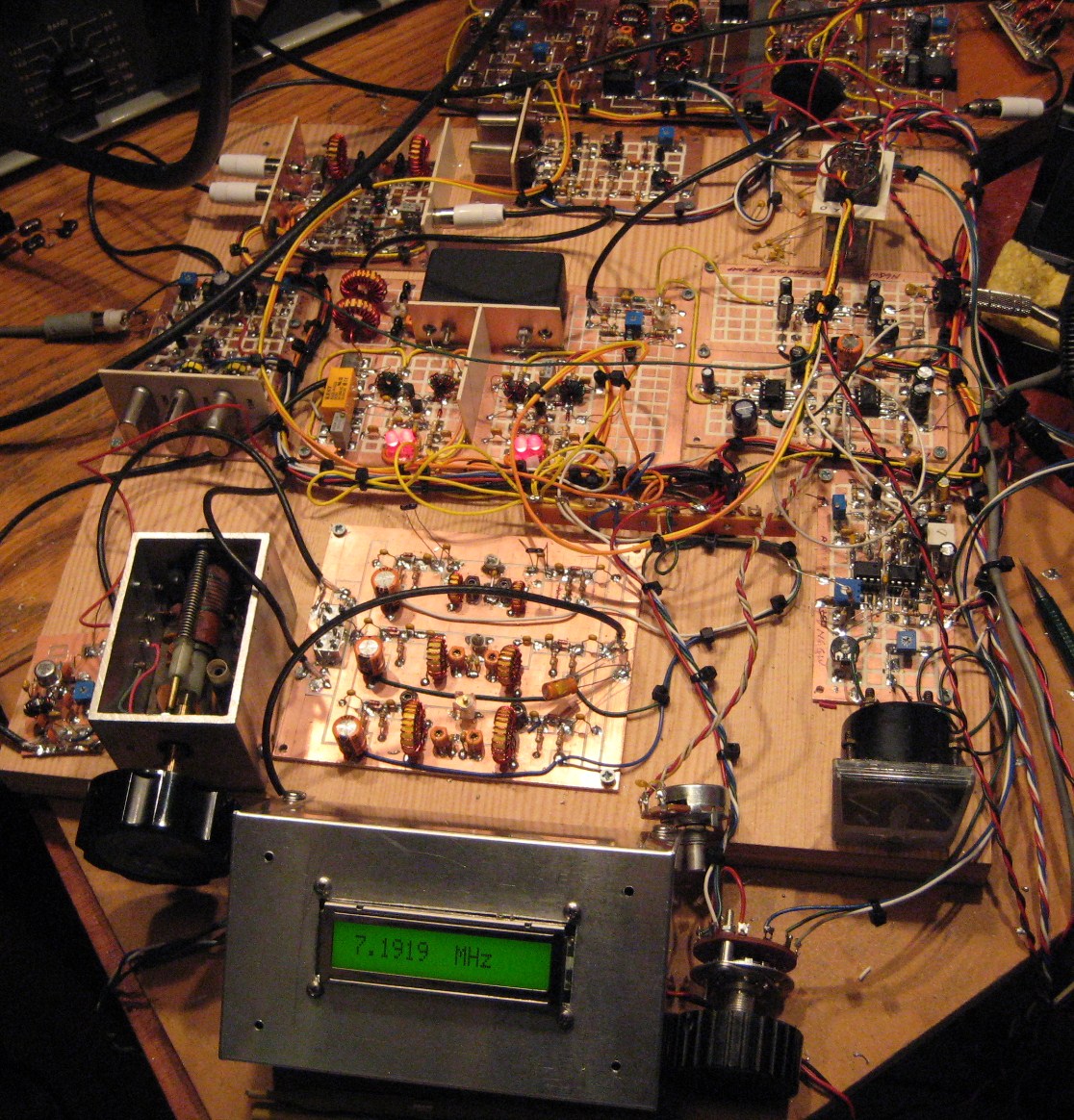

Bread Board Version

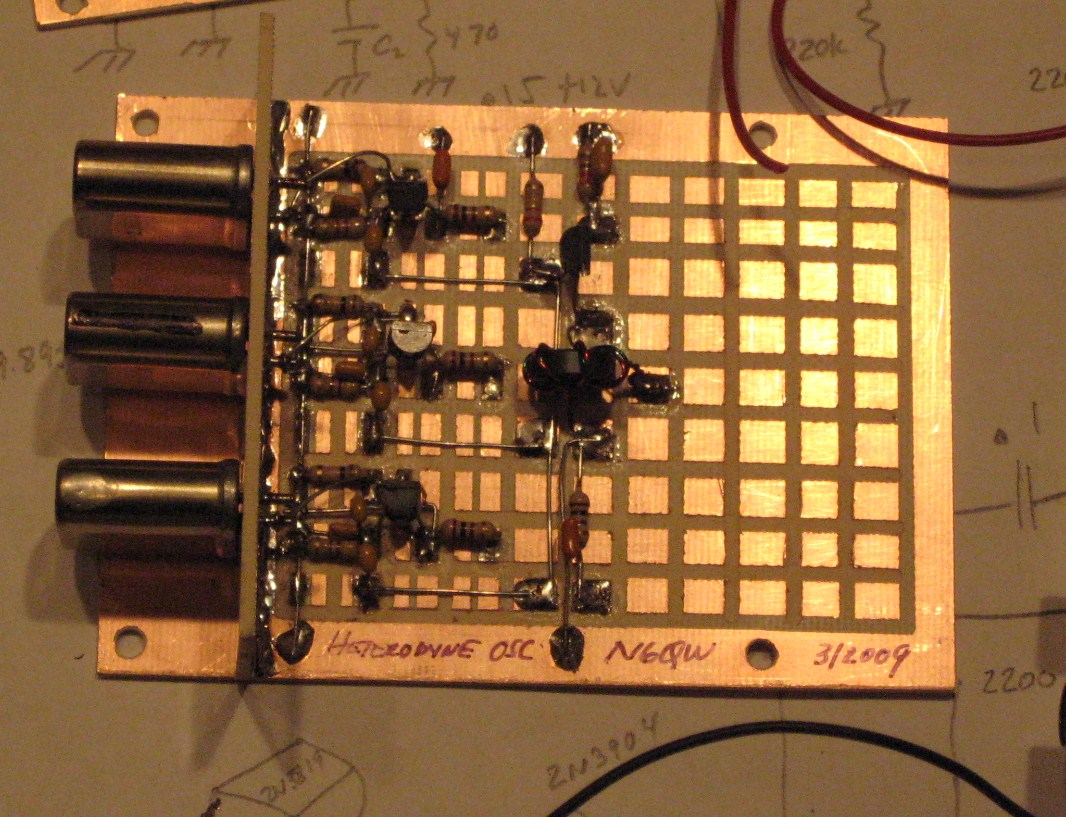

The Heterodyne Oscillators

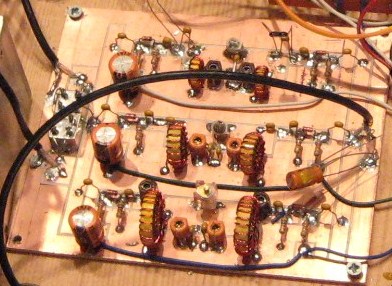

Display BP Filters

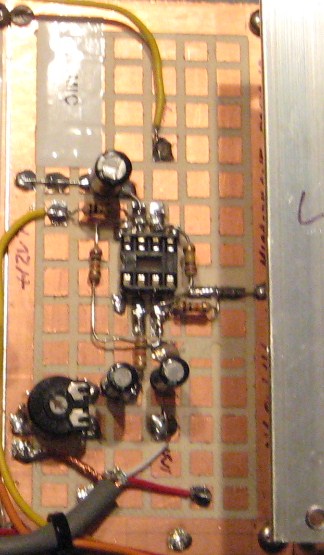

Microphone Amplifier
Top View
Unresolved Issues

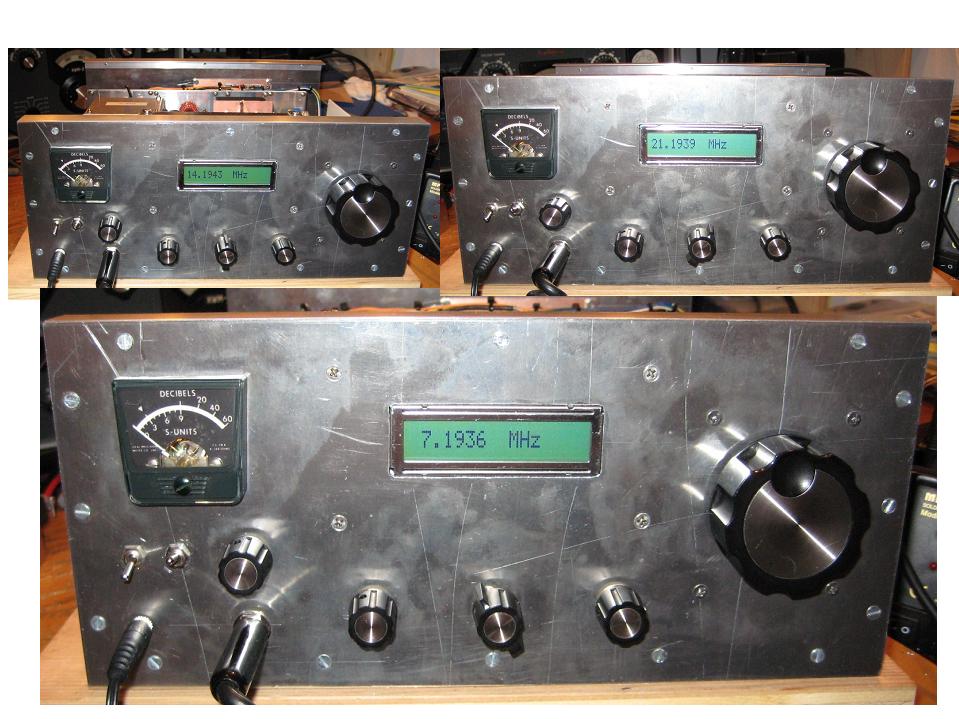

Finished Version

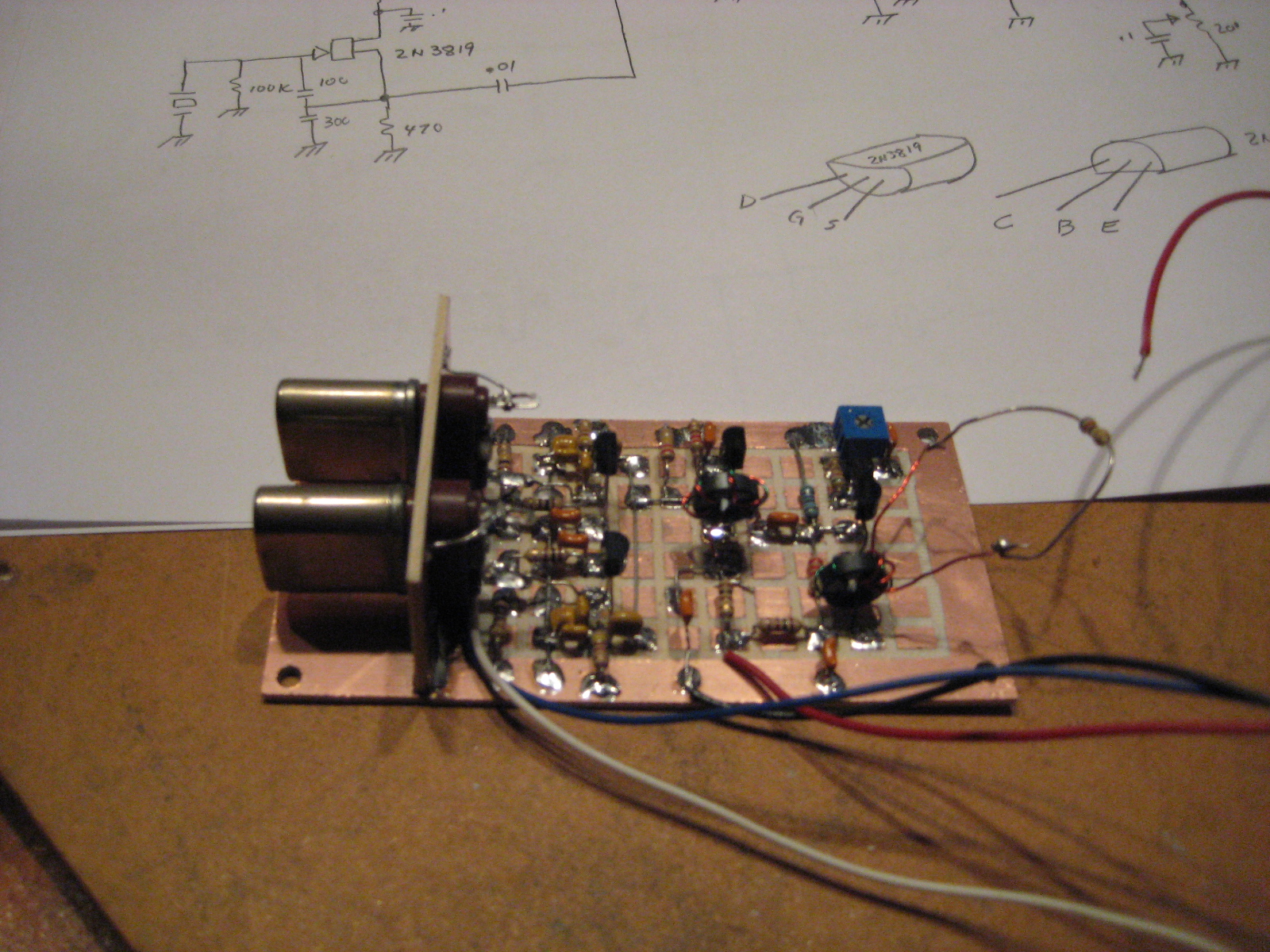

BFO Carrier Oscillators

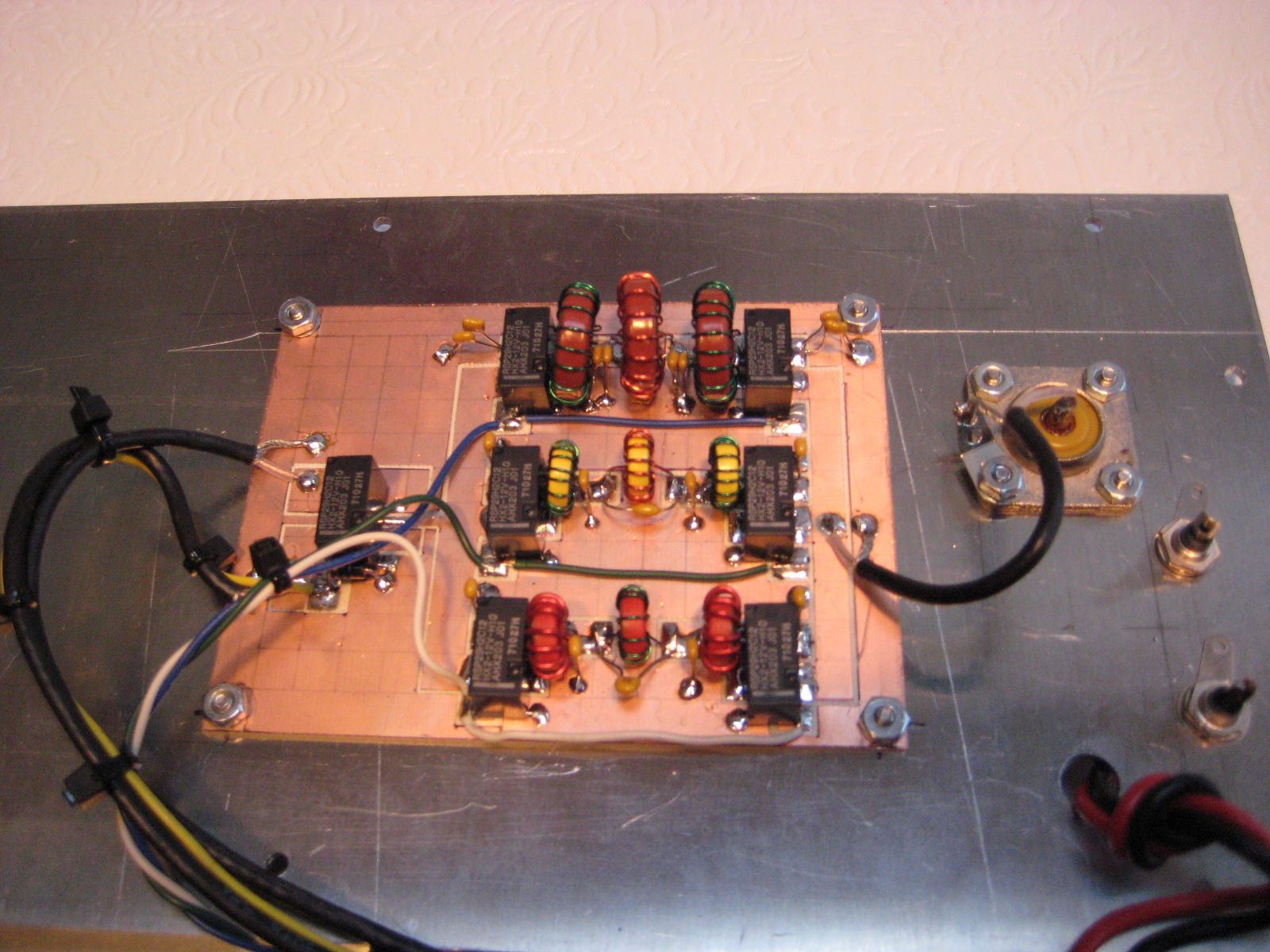

Relay Band Switching

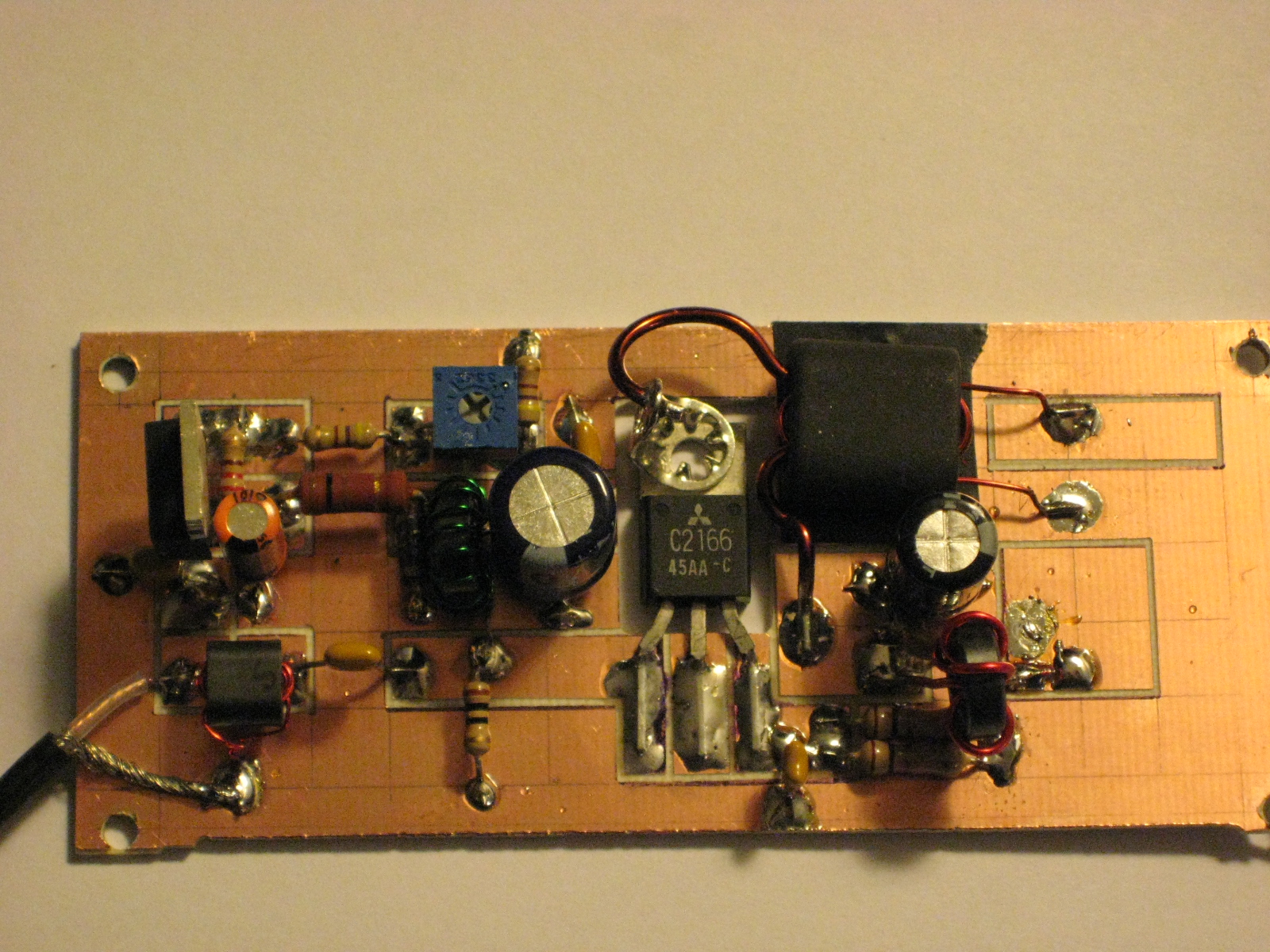

Power Amplifier Stage

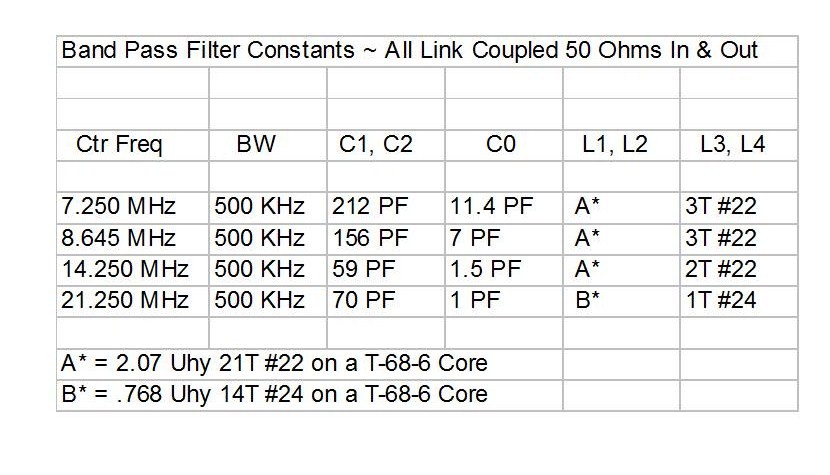

Filter Constants
Schematics
